Lagrange Points

Introduction:

Since the launch of the first artificial satellite in 1957, governments, companies, and research institutions have been planting flags among the stars. But while it might seem like there’s plenty of room in this vast expanse, some pieces of celestial real estate are more valuable than others. Each of these dots is a Lagrange point, and as far as human space exploration is concerned, they may be the most important places in our solar system.

What are Lagrange Points:

Named after the 18th-century mathematician Joseph-Louis Lagrange, who deduced the position of two of these points, Lagrange points are rare locations of equilibrium in our ever-changing universe. All celestial bodies exert a gravitational force on nearby objects, pulling them in and out of orbits. Gravity, along with various apparent forces, determines the nature of these orbits. However, Lagrange points are locations where all these forces balance out. Thus, if we place an object of relatively low mass at these points, it will maintain a constant distance from the massive bodies pulling on it.

Essentially, Lagrange points are like celestial parking spaces, once an object is there, it requires little to no energy to stay in place. Therefore, whenever humans want to keep an object in one location for a long period without using much fuel, it needs to be orbiting a Lagrange point.

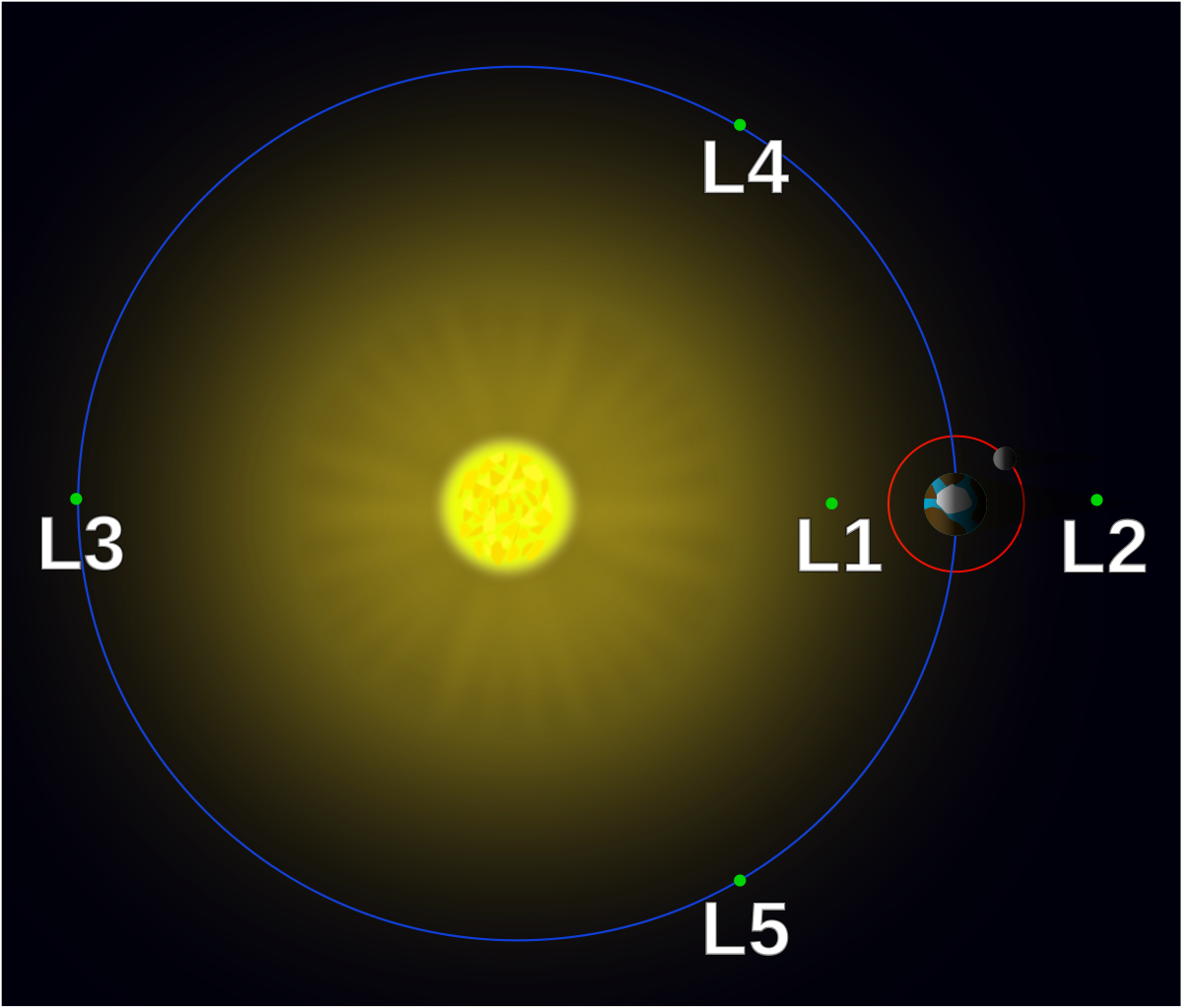

The Main Lagrange Points:

L1 – Lagrange Point 1

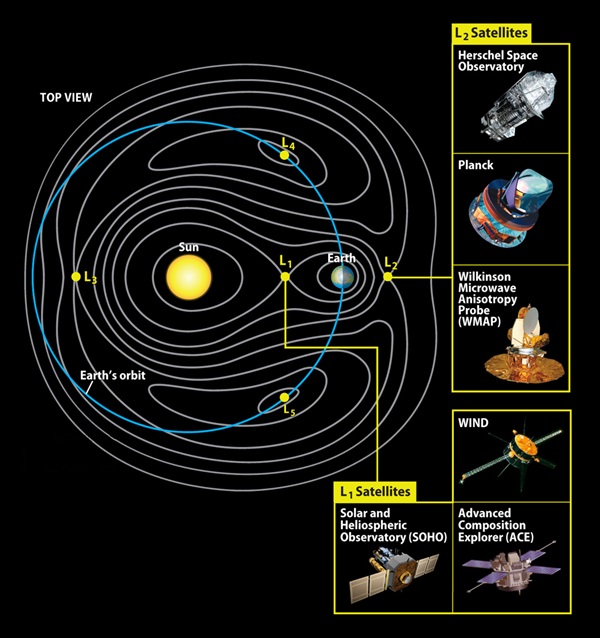

The L1 point is located between the Earth and the Sun, approximately 1.5 million kilometers from Earth. This point is especially useful for solar observation satellites because it offers a constant, unobstructed view of the Sun. Missions that take advantage of this point include:

• SOHO (Solar and Heliospheric Observatory): Monitors solar activity and provides crucial data for predicting solar storms.

• DSCOVR (Deep Space Climate Observatory): Observes space weather and measures changes in solar radiation reaching the Earth.

L2 – Lagrange Point 2

The L2 point is located about 1.5 million kilometers from Earth, in the direction opposite the Sun. This point is ideal for space telescopes observing the deep universe because it is shielded from direct sunlight, providing a stable and cool environment for high-precision astronomical observations. Examples of missions at this point include:

• James Webb Space Telescope (JWST): Capable of observing the distant infrared universe and capturing extremely detailed images of distant galaxies, exoplanets, and other cosmic phenomena.

• Planck Observatory: Studied the cosmic microwave background, helping to understand the origin and evolution of the universe.

L3 – Lagrange Point 3

The L3 point is located on the opposite side of the Sun relative to Earth, at approximately the same distance from the Sun as Earth. This point is difficult to explore due to its position, which is always hidden behind the Sun. Direct communication is virtually impossible, making L3 currently unexplored by space missions. However, in theory, L3 could be used for missions that require a stable position directly opposite the Sun.

L4 and L5 – Lagrange Points 4 and 5

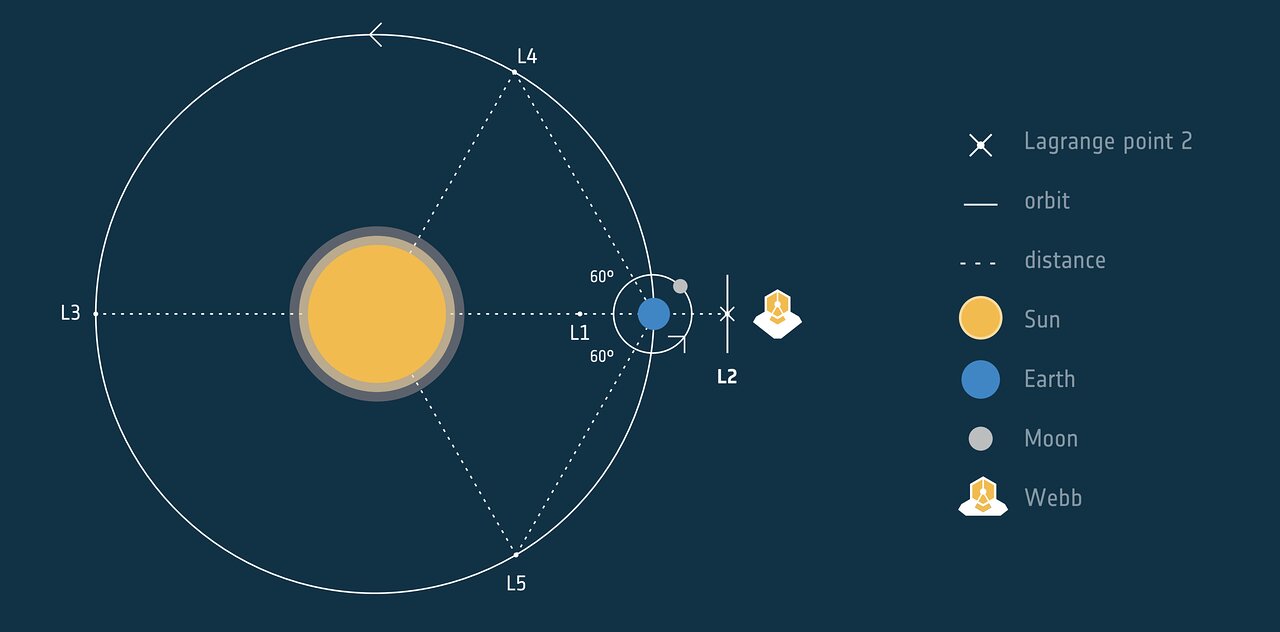

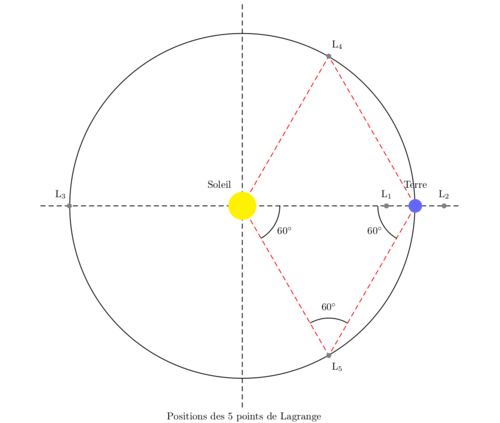

The L4 and L5 points form the vertices of two equilateral triangles with the Earth and the Sun, situated 60 degrees ahead and behind the Earth in its orbit, respectively. These points are considered the most stable of all Lagrange points and have the capacity to accumulate material over time. This natural stability makes them of great interest for future space missions. Some possible applications include:

• Asteroid mining: L4 and L5 may contain resource-rich asteroids, which can be exploited for rare and valuable materials.

• Human settlements: Due to their stability, L4 and L5 are potential candidates for building space bases or human colonies, which could serve as research centers, habitats, or stopover points for farther missions.

• Launch platforms: They could be used as launch sites for missions heading to other parts of the solar system, reducing the costs and complexity of deep space exploration missions.

Future Importance:

As space exploration advances, Lagrange points will play an increasingly central role. They offer strategic locations for placing satellites and telescopes, operational bases for mining and research missions, and eventually, potential sites for human settlements. These points are essential for future space infrastructure, serving as springboards for exploration beyond our solar system.

Effectively exploring and utilizing Lagrange points could open new frontiers for humanity, not only in terms of scientific knowledge but also in the physical and technological expansion beyond Earth, enabling a significant step in the journey to becoming an interplanetary species.
